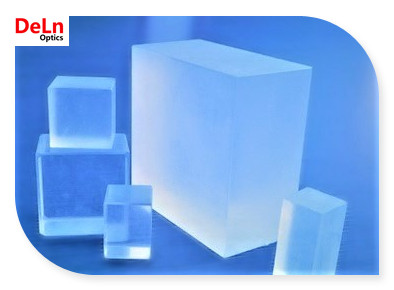

KDP and KD*P are among the most widely-used NLO materials, characterized by good UV transmission, high damage threshold, and high birefringence.
They are usually used for doubling, tripling and quadrupling of a Nd:YAG laser under the room temperature. In addition, they are also excellent electro-optic crystals with high electro-optic coefficients, widely used as electro-optical modulators, such as Q-switches, Pockels Cells, etc.
Applications
Second, third, and fourth harmonic generation of Nd:lasers
Frequency doubling of dyer laser
High power laser frequency conversion materials
Shutter for high speed photography
Electro-optical modulator and Q switches
Properties
| |
KDP
|
KD*P
|
|
Chemical Formula
|
KH2PO4
|
KD2PO4
|
|
Transparency Range
|
200-1500nm
|
200-1600nm
|
|
Nonlinear Coefficients
|
d36=0.44pm/V
|
d36=0.40pm/V
|
|
Refractive Index (at 1064nm)
|
no=1.4938, ne=1.4599
|
no=1.4948, ne=1.4554
|
|
Absorptance
|
0.07/cm
|
0.006/cm
|
|
Optical Damage Threshold
|
>5 GW/cm2
|
>3 GW/cm2
|
|
Extinction Ratio
|
30dB
|
|
Sellmeier Equations of KDP(λ in um)
|
|
no2 = 2.259276 + 0.01008956/(λ2 - 0.012942625) + 13.005522λ2/(λ2 - 400)
ne2 = 2.132668 + 0.008637494/(λ2 - 0.012281043) + 3.2279924λ2/(λ2 - 400)
|
|
Sellmeier Equations of K*DP( λ in um)
|
|
no2 = 1.9575544 + 0.2901391/(λ2 - 0.0281399) - 0.02824391λ2 +0.004977826λ4
ne2 = 1.5005779 + 0.6276034/(λ2 - 0.0131558) - 0.01054063λ2 +0.002243821λ4
|
Specifications
|
Dimension Tolerance
|
±0.1mm
|
|
Angle Tolerance
|
Δθ<0.5°, ΔΦ<0.5°
|
|
Surface Flatness
|
<λ/8@633nm
|
|
Wavefront Distortion
|
<λ/4@633nm
|
|
Parallelism
|
<20 arc seconds
|
|
Perpendicularity
|
<15 arc minutes
|
|
Surface Quality
|
20/10 Scratch and Dig
|
|
Clear Aperture
|
>95%
|
