Lateral Displacement Beamsplitter

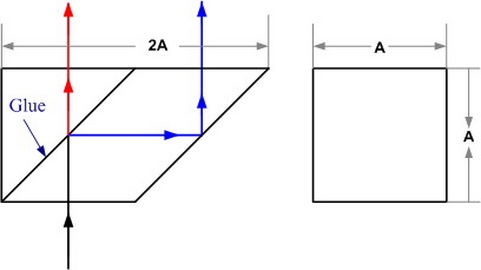

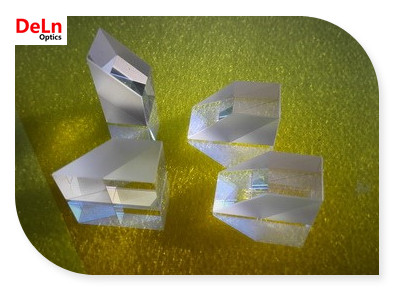

Lateral Displacement Beamsplitters output two parallel beams separated by a fixed distance. The beamsplitters consist of a precision rhomboid prism cemented to a precision right angle prism. Entrance and exit faces feature a multi-layer anti-reflection (AR) coating for increased efficiency. Polarizing and non-polarizing coatings are available.

Specifications

Material	BK7
Dimension Tolerance	±0.1mm
Clear Aperture	>90%
Flatness	λ/4 @ 632.8nm to λ/10 @ 632.8nm per 25mm
Angle Tolerance	±3 arc minutes to ±5 arc seconds
Exiting Beam Parallelism	3 arc minutes to 30 arc seconds
Surface Quality	60/40 or better
Single Wavelength	532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550nm
Broadband	450-650, 650-900, 720-1080, 900-1200, 1200-1600nm
Non-Polarizing:

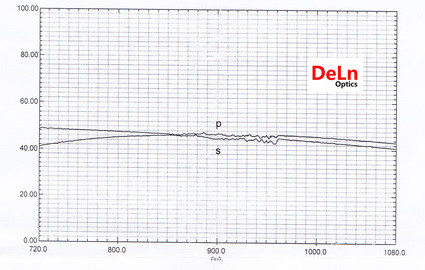

Non-Polarizing Coating	Absorption<10%,T/R:45%±5%,Polarization<6%
AR Coating	R<0.5% @ Broadband
Polarization:

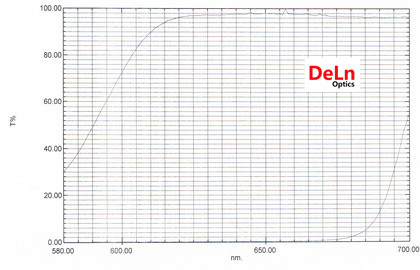

Polarizing Coating	Tp>95%, Rs>99.5%; Extinction Ratio: >500:1
AR Coating	R<0.25%@Single Wavelength or R<0.5% @ Broadband

Information

Product Line

WARRANTY

All products are guaranteed to be in specifications in material and workmanship for a period of 12 months after shipment.
We do not assume liability for installation, labor or consequential damages.
This warranty is not suitable for failure of the products due to misuse, abuse, accident, or neglect.
