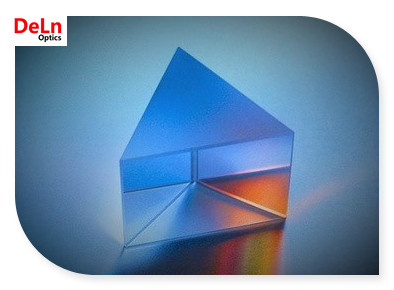

Equilateral Prism

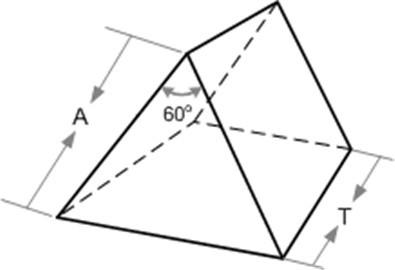

Equilateral prism is one kind of dispersion prism. It has three equal 60deg angles and it can separate a beam of white light into its component colors. Equilateral prism is always used for wavelength separating applications and spectrum analysis.

Specifications

Material	BK7, UV Fused Silica, SF11
Dimension Tolerance	+0/-0.1mm
Clear Aperture	>90%
Angle Tolerance	60deg±3 arc minutes or better
Surface Quality	60/40 scratch and dig or better
Flatness	<λ/[email protected] or better
Polished Surface	Three side surfaces polished
Chamfer	Protective
Coating	None

Information

Product Line

WARRANTY

All products are guaranteed to be in specifications in material and workmanship for a period of 12 months after shipment.
We do not assume liability for installation, labor or consequential damages.
This warranty is not suitable for failure of the products due to misuse, abuse, accident, or neglect.
