Anamorphic Prism

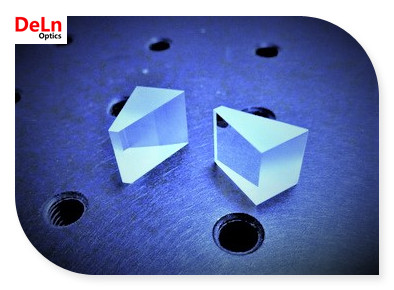

Anamorphic Prism Pairs

Diode lasers usually feature an elliptical beam profile. While, mostly a circular beam shape is required, like mode-matching to an external resonator, adapting beam size to pass a small aperture of an isolator, and etc.

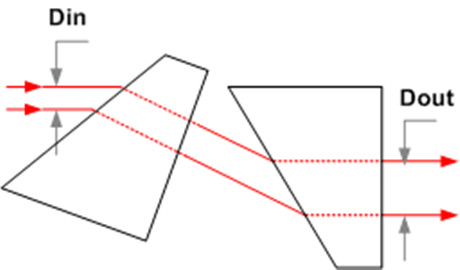

Anamorphic Prism Pairs are used to transform elliptical laser diode beams into nearly circular beams by magnifying the elliptical beam in one dimension.

Specifications

Material	SF11
Dimension Tolerance	A=B=12mm ±0.1mm, C=8.5mm
Surface Quality	60/40 scratch and dig
Flatness	λ/4 @ 632.8nm or better
Clear Aperture	>90%
Wedge Angle	29°27'
Chamfer	Protective chamfer
AR Coating	No, Available

Information

Product Line

WARRANTY

All products are guaranteed to be in specifications in material and workmanship for a period of 12 months after shipment.
We do not assume liability for installation, labor or consequential damages.
This warranty is not suitable for failure of the products due to misuse, abuse, accident, or neglect.
