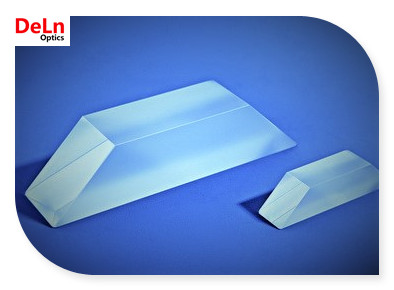

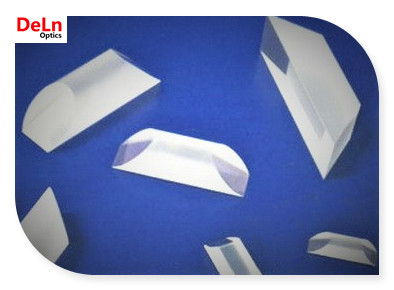

Dove Prism

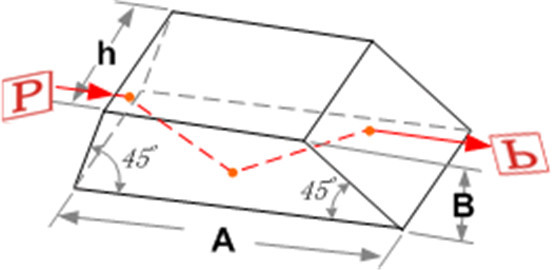

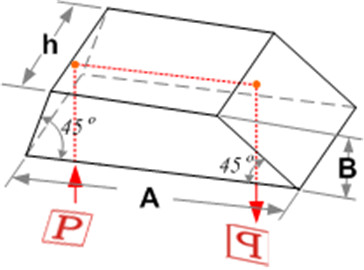

Dove prism is always used to rotate image. If you rotate the prism around a longitudinal axis, the image rotates through twice the angle the prism rotates through. Sometimes, dove prism is also used for 180deg reflection.

Specifications

Material

BK7 Grade A optical glass

Dimension Tolerance

±0.1mm

Surface Quality

60/40 scratch and dig or better

Flatness

λ/4 @ 632.8nm or better

Clear Aperture

>90%

Angle Tolerance

<3 arc minutes or better

Chamfer

Protective chamfer

AR Coating

No, Available




Information

Product Line

WARRANTY

All products are guaranteed to be in specifications in material and workmanship for a period of 12 months after shipment.
We do not assume liability for installation, labor or consequential damages.
This warranty is not suitable for failure of the products due to misuse, abuse, accident, or neglect.
