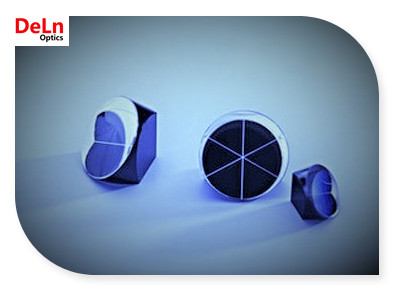

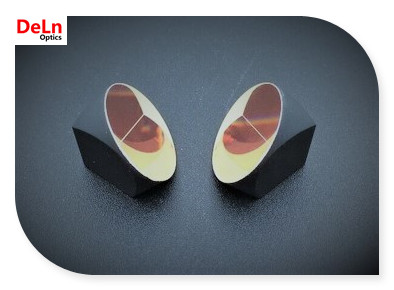

Corner Cube Reflector

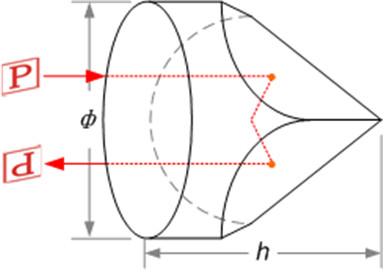

Corner Cube Retro Reflector operates on the principle of Total Internal Reflection (TIR). An incident beam will be reflected parallel to itself by the three roof surfaces. The reflection is insensitive to the incident angle, even when the incident beam enters the prism off normal axis, there will still be a strict 180deg reflection.

Specifications

Material	BK7, UV Fused Silica or Silicon
Dimension Tolerance	+0.0/-0.1 mm
Clear Aperture	>90%
Deviation	Up to 180°±3 arc seconds or ±5 arc seconds or ±8 arc seconds
Flatness	λ/[email protected] for big surface, λ/[email protected] for small surfaces
Wavefront Distortion	λ/[email protected]
Surface Quality	60/40 scratch and dig
Coating	None, AR coating and HR coating available

Information

Product Line

WARRANTY

All products are guaranteed to be in specifications in material and workmanship for a period of 12 months after shipment.
We do not assume liability for installation, labor or consequential damages.
This warranty is not suitable for failure of the products due to misuse, abuse, accident, or neglect.
