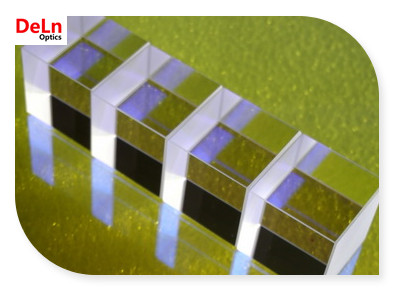

Beamsplitter Cube

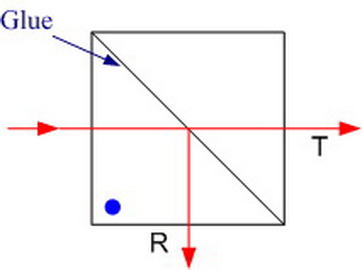

Cube beamsplitters are constructed by cementing two precision right angle prism together with appropriate interference coating on the hypotenuse surface. The absorption loss to the coating is minimal transmission and reflection approach 50% (average) though output is partially polarized.

If polarization sensitivity is critical, we recommended that you select from our Polarization Cube Beamsplitter or Non-polarization Cube Beamsplitter.

Specifications

Material	BK7
Dimension And Tolerance	3x3, 5x5, 10x10, 12.7x12.7, 20x20, 25.4x25.4mm ±0.1mm or as requirement
Clear Aperture	>90%
Flatness	λ/[email protected] or better
Beam Deviation	<3 arc minutes;10arc seconds or better
Surface Quality	60/40, or better
Coating	Partial reflectance on hypotenuse face AR coating on all entrances

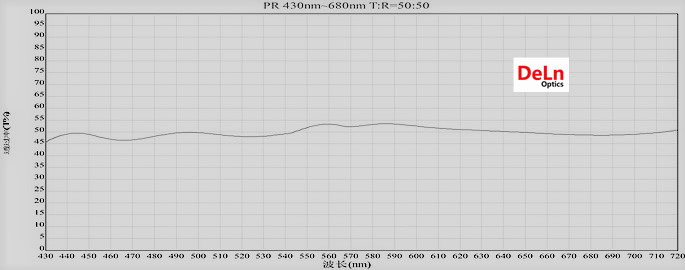

T/R	50/50±5%, T=(Ts+Tp)/2, R=(Rs+Rp)/2, other T/R available
Damage Threshold	>500mJ/cm², 20ns, 20Hz, @1064nm

Standard Coating wavelength:

Narrow Band: 488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550 nm
Broadband: 450-650, 650-900, 900-1200, 1200-1550, 1500-1610 nm

Information

Product Line

WARRANTY

All products are guaranteed to be in specifications in material and workmanship for a period of 12 months after shipment.
We do not assume liability for installation, labor or consequential damages.
This warranty is not suitable for failure of the products due to misuse, abuse, accident, or neglect.
