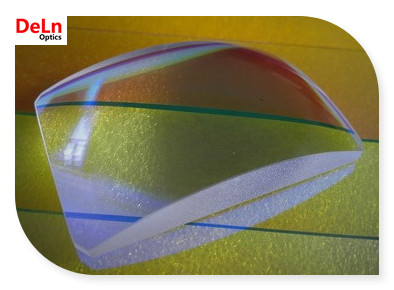

Plano Convex Spherical Lens

Plano Convex Lens

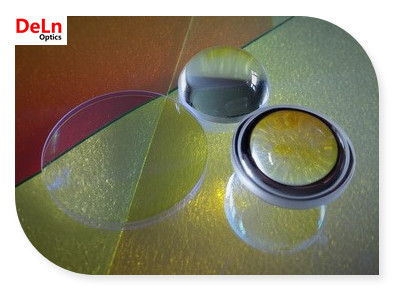

Plano-convex Lenses present a curved interface and a planar interface. They have a positive focal length, which makes it ideal for collecting and focusing light for many imaging applications.

They are for instance the micro lenses situated on top of a wafer, and also encountered in macroscopic optical systems.

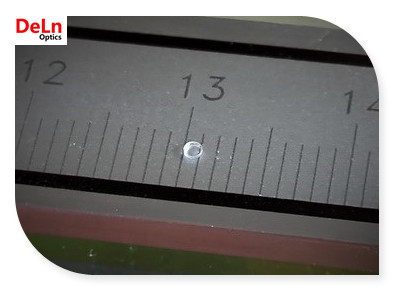

DELN can make 1 mm diameter of the lens.

Specifications

Material	Optical Glasses, Fused Silica, Silicon, Ge,CaF2, etc
Dimension Tolerance	+0/-0.1mm
Thickness Tolerance	±0.2mm
Surface Quality	60/40 or better
Power(fringe@633nm)	3
Irregularity(fringe@633nm)	0.5
Centration	<3 arc minutes
Focal Length Tolerance	±2%
Clear Aperture	>90%
Chamfer	Protective <0.5mmx45deg
Coating	Request

Information

Product Line

WARRANTY

All products are guaranteed to be in specifications in material and workmanship for a period of 12 months after shipment.
We do not assume liability for installation, labor or consequential damages.
This warranty is not suitable for failure of the products due to misuse, abuse, accident, or neglect.
