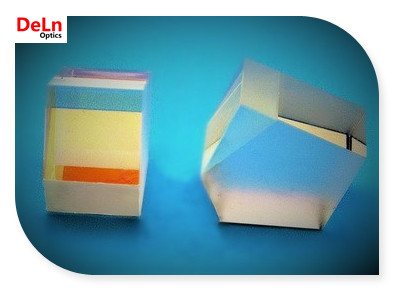

Beamsplitter Penta Prism

Beamsplitter penta is combined with a penta prism and a wedge cemented on one reflective surface, a beamsplitter coating on the cemented interface to form a beamsplitter.

Now the transmission/reflection (T/R) ratio of beamsplitter penta prism we provided include 20/80, 30/70, 40/60 and etc. Other T/R ratio is available upon request.

Specifications

Material	BK7, Fused silica
Dimension Tolerance	±0.1mm
90° Deviation Tolerance	<30 arc seconds or 10arc seconds or better
180° Deviation Tolerance	<30 arc seconds or 10arc seconds or better
Flatness	<λ/[email protected] or better
Surface Quality	60/40 or better
Coating	Metal or dielectric reflective coating Partial reflective coating on cemented surface Multilayer “V” or BBAR coating
T/R Tolerance	20/80+/-2%; 30/70+/-3%; 40/60+/-4%; 50/50+/-5%
Clear Aperture	>90%
Chamfer	Protective
