Cemented Zero Order Waveplate

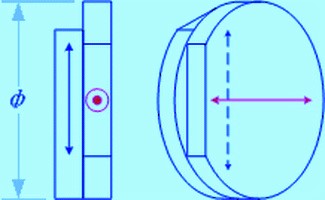

Cemented zero order waveplate is constructed by two quartz plates with their fast axis crossed, the two plates are cemented by UV epoxy.

The difference in thickness between the two plates determines the retardance. Zero order waveplates offer a substantially lower dependence on temperature and wavelength change than multi-order waveplates.

Better Temperature Bandwidth
Wide Wavelength Bandwidth
Both Sides AR Coated

Specifications

Material

Crystal Quartz

Dimension Tolerance

+0.0/-0.1mm

Wavefront Distortion

λ/[email protected]

Retardation Tolerance

λ/300

Parallelism

<1 arc second

Surface Quality

20/10 scratch and dig

Clear Aperture

>90% central area

Standard Wave

Quarter-wave(λ/4), Half-wave(λ/2)

AR Coating

R<0.25%@central wavelength



Standard wavelength:

266nm, 355nm,532nm, 632.8nm, 780nm,808nm, 850nm, 980nm,1064nm, 1310nm, 1480nm, 1550nm


Other Wavelength Available
