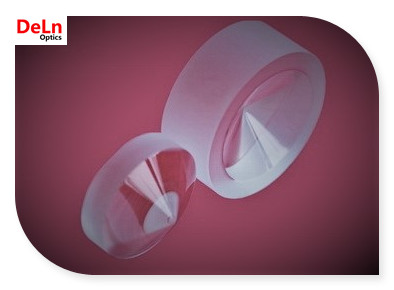

Axicon Lens

Axicon is always used to produce a non-diffractive ring-shaped beam in the near field, whose diameter will increase over distance while maintaining a constant ring thickness. When used with a collimated Gaussian beam. Axicon can create an approximation of a Bessel beam ideal for a range of medical, research, measurement, and alignment applications.

Creates a Ring Shaped Approximation of a Bessel Beam

Many Apex Angles Available (90deg to 179deg)

AR Coating Upon Request

Custom Size Available

Specifications

Material	UV grade fused silica
Design Wavelength	632.8nm
Diameter Tolerance	+0/-0.15mm
Center Thickness Tolerance	±0.2mm
Apex Angle Tolerance	±0.5Deg
Flatness	<λ/[email protected]
Surface Quality	60/40 scratch and dig
Clear Aperture	>90%
Chamfer	Protective <0.5mmx45deg
Coating	None, Available upon request
