Optically Contacted Zero Order Waveplate

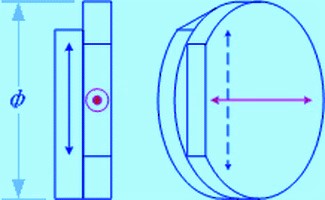

Optically Contacted zero order waveplate is constructed by two quartz plates with their fast axis crossed, the two plates are constructed by optically contacted method, the optical path is epoxy free.
The difference in thickness between the two plates determines the retardance. Zero order waveplates offer a substantially lower dependence on temperature and wavelength change than multi-order waveplates.
Optically Contacted
Double Retardation Plates
Broad Spectral Bandwidth
Wide Temperature bandwidth
Hight Damage Threshold
Standard wavelength:
266nm, 355nm,532nm, 632.8nm, 780nm,808nm, 850nm, 980nm,1064nm, 1310nm, 1480nm, 1550nm
Other Wavelength Available
The difference in thickness between the two plates determines the retardance. Zero order waveplates offer a substantially lower dependence on temperature and wavelength change than multi-order waveplates.
Optically Contacted
Double Retardation Plates
Broad Spectral Bandwidth
Wide Temperature bandwidth
Hight Damage Threshold
Specifications
|
Material |
Crystal Quartz |
|
Dimension Tolerance |
+0.0/-0.1mm |
|
Wavefront Distortion |
|
|
Retardation Tolerance |
λ/300 |
|
Parallelism |
<1 arc second |
|
Surface Quality |
20/10 scratch and dig |
|
Clear Aperture |
>90% central area |
|
Standard Wave |
Quarter-wave(λ/4), Half-wave(λ/2) |
|
AR Coating |
R<0.25%@central wavelength |
Standard wavelength:
266nm, 355nm,532nm, 632.8nm, 780nm,808nm, 850nm, 980nm,1064nm, 1310nm, 1480nm, 1550nm
Other Wavelength Available
