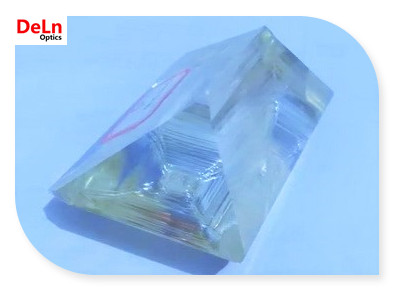

KTP

KTP crystals is the most commonly used material for frequency doubling of Nd-doped lasers.

It is widely used for frequency mixing to generate Red/Green/Blue output, and for OPO and OPA to generate visible to mid-infrared tunable output. It is also used for many E-O devices such as Q-switches and E-O modulators.

KTP is widely used in both commercial and military lasers including laboratory and medical systems, range-finders, lidar, optical communication and industrial systems.


Advantages

Large nonlinear optical coefficient

Wide angular bandwidth and small walk-off angle

Broad temperature and spectral bandwidth

High Electro-Optics(E-O) coefficient and low dielectric constant

Non-hygroscopic, chemically and mechanically stable







Applications


Frequency Doubling (SHG) of Nd-doped Lasers for Green/Red Output

Frequency Mixing (SFM) of Nd Laser and Diode Laser for Blue Output

Parametric Sources (OPG, OPA and OPO) for 600nm - 4500nm Tunable Ouptut

E-O Modulators, Optical Switches, Directional Couplers

Optical Waveguides for Integrated NLO and E-O Devices




Specifications

Dimension Tolerance

±0.1mm

Angle Tolerance

Δθ<0.5°, ΔΦ<0.5°

Surface Flatness

<λ/[email protected]

Wavefront Distortion

<λ/[email protected]

Parallelism

<20 arc seconds

Perpendicularity

<5 arc minutes

Surface Quality

10/5 Scratch and Dig

Clear Aperture

>95%

Coating

AR/HR coating Upon customer’s request
