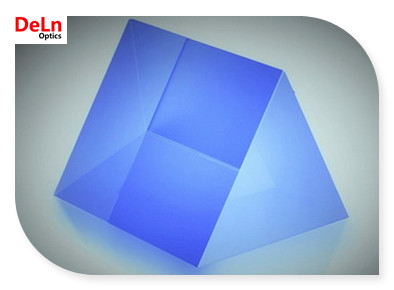

Brewster Prism

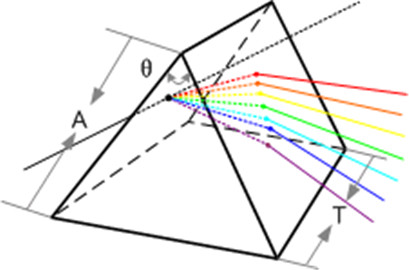

Brewster prism is one kind of dispersion prism, it is normally used to separate two wavelengths following the same beam path.

Brewster prism is designed specifically for intra-cavity laser application, the beam enters and exits the prism at Brewster's angle, minimizing intra-cavity losses.


Specifications

Material

BK7, UV Fused Silica, SF11

Dimension Tolerance

+0/-0.1mm

Clear Aperture

>90%

Angle Tolerance

<3 arc minutes or better

Surface Quality

60/40 scratch and dig or better

Flatness

<λ/[email protected] or better

Chamfer

Protective

Polished Surface

Two side surfaces polished, base is fine ground

Coating

None, AR coating available
