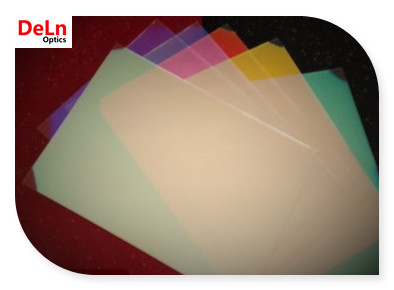

Dichroic Color Filter

45° Reflective Dichroic Color Filters

DELN 45° Reflective Dichroic Color Filters are designed to be used at a 45° angle of incidence and will reflect the stated color while transmitting the remaining visible wavelengths.

Each filter provides greater than 98% reflection over the specified color range and greater than 90% transmission of the remaining wavelengths.

Specifications

Material	BK7, Fused Silica, Borofloat, B270, or other
Dimension Tolerance	+0.0/-0.1mm
Thickness Tolerance	±0.2mm
Wavelength Tolerance	15nm
Clear Aperture	>90%
Surface Quality	60/40 or better
AOI	45deg
Coating1 - Red	T>90% @ 400 – 595nm, R_avg > 98% @ 640-750nm
Coating2 - Green	T>90% @ 600 – 800nm, R_avg >98% @ 520-555nm
Coating3 - Blue	T>90% @ 530 – 800nm, R_avg > 98% @ 400 - 475nm
Coating4 - Cyan	T>90% @ 625 – 725nm, R_avg > 98% @ 400 - 565nm
Coating5 - Yellow	T>90% @ 400 – 495nm, R_avg > 98% @ 550 - 725nm
Coating6 - Magenta	T>90% @ 520 – 580nm, R_avg > 98% @ 400 - 465nm & 635 - 725nm

0° Dichroic Color Filters

DELN 0° Dichroic Color Filters are commonly used for color separation and contrast enhancement applications. these filters are easily integrated into a variety of existing camera and illumination setups.

Typical configurations include photo enlargers, beam separation, and placing filters in front an imaging lens to selectively isolate spectral regions/colors. If the light source is already colored (i.e., red LEDs), then a filter in front of the lens can be used to filter out unwanted ambient light.

Specifications

Material

Borofloat, B270, or other

Dimension Tolerance

+0.0/-0.1mm

Thickness Tolerance

±0.2mm

Wavelength Tolerance

15nm

Clear Aperture

>90%

Surface Quality

60/40

AOI

0 deg

Coating1 - Red

T_avg <1.0% @ 390 - 570nm, T_avg >85% @ 620 - 750nm

Coating2 - Green

T_avg <1.0% @ 400 - 480nm,
T_avg >80% @ 525 - 555nm,
T_avg <1.0% @ 590 - 720nm

Coating3 - Blue

T_avg >85% @ 390 - 485nm, T_avg <1.0% @ 525 - 750nm

Coating4 - Cyan

T_avg >80% @ 400 - 550nm, T_avg <1.0% @ 640 - 740nm

Coating5 - Yellow

T_avg <1.0% @ 400 - 475nm, T_avg >80% @ 550 - 750nm

Coating6 - Magenta

T_avg <1.0% @ 535 - 565nm, T_avg >80% @ 640 - 740nm

Information

Product Line

WARRANTY

All products are guaranteed to be in specifications in material and workmanship for a period of 12 months after shipment.
We do not assume liability for installation, labor or consequential damages.
This warranty is not suitable for failure of the products due to misuse, abuse, accident, or neglect.
