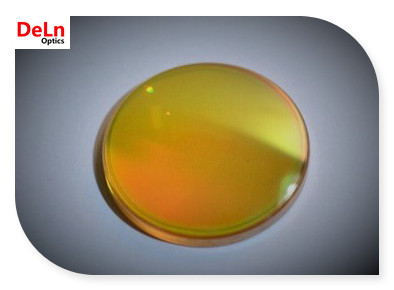

ZnSe Lens

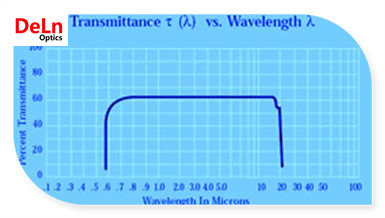

ZnSe is transparent from 0.5 micron to 19 micron. It is mainly used in CO2-laser application for its excellent imaging characteristics and high resistance to thermal shock.

Specifications

Material

CVD ZnSe

Dimension Tolerance

+0/-0.1mm

Thickness Tolerance

±0.2mm

Surface Quality

60/40 or better

Power(fringe@633nm)

3

Irregularity(fringe@633nm)

0.5

Centration

<3 arc minutes

Focal Length Tolerance

±2%

Clear Aperture

>90%

Chamfer

Protective <0.5mmx45deg

Coating

Request






Information

Product Line

WARRANTY

All products are guaranteed to be in specifications in material and workmanship for a period of 12 months after shipment.
We do not assume liability for installation, labor or consequential damages.
This warranty is not suitable for failure of the products due to misuse, abuse, accident, or neglect.
