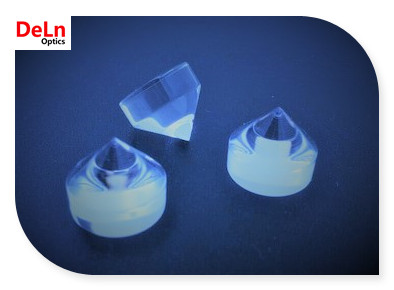

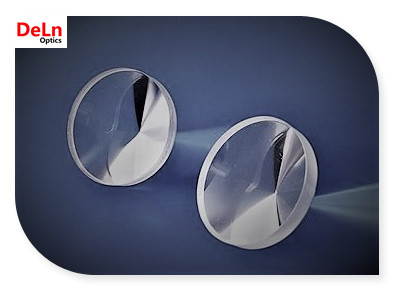

Axicon Lens

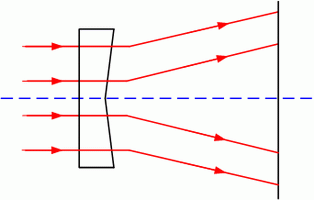

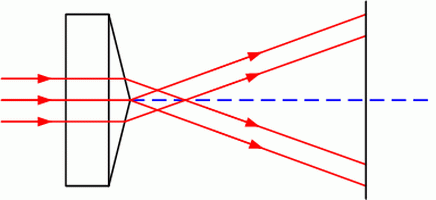

Axicon is always used to produce a non-diffractive ring-shaped beam in the near field, whose diameter will increase over distance while maintaining a constant ring thickness. When used with a collimated Gaussian beam. Axicon can create an approximation of a Bessel beam ideal for a range of medical, research, measurement, and alignment applications.

Creates a Ring Shaped Approximation of a Bessel Beam

Many Apex Angles Available (90deg to 179deg)

AR Coating Upon Request

Custom Size Available



Specifications

Material

UV grade fused silica

Design Wavelength

632.8nm

Diameter Tolerance

+0/-0.15mm

Center Thickness Tolerance

±0.2mm

Apex Angle Tolerance

±0.5Deg

Flatness

<λ/[email protected]

Surface Quality

60/40 scratch and dig

Clear Aperture

>90%

Chamfer

Protective <0.5mmx45deg

Coating

None, Available upon request
