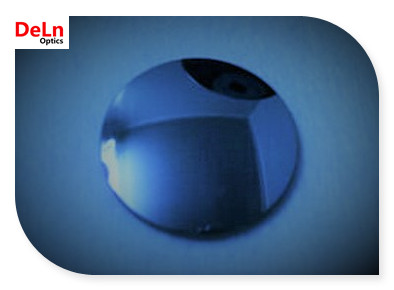

Si Lens

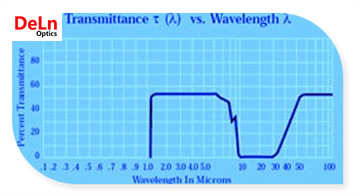

Silicon is a good IR material, it can be used from 1.2 to 7 microns, its peak transmission range is in 3-5 micron. Silicon can be used in some circumstances where weight is a concern as that the density of Silicon is similar to optical glass. Silicon material is widely used in security and military applications.

Specifications



Material

Si

Dimension Tolerance

+0/-0.1mm

Thickness Tolerance

±0.2mm

Surface Quality

60/40 or better

Power([email protected])

3

Irregularity([email protected])

0.5

Centration

<3 arc minutes

Focal Length Tolerance

±2%

Clear Aperture

>90%

Chamfer

Protective <0.5mmx45deg

Coating

Request
