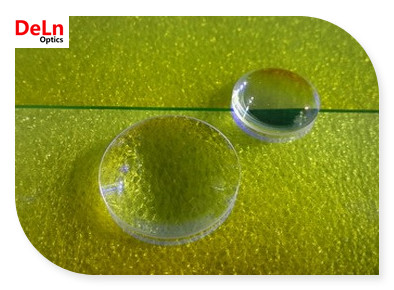

CaF2 Lens

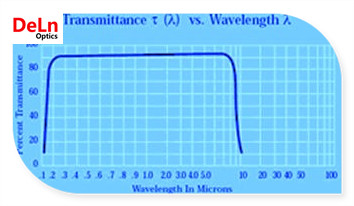

CaF2 is a cubic single crystal. It has good transmission from UV to middle infrared wavelength. It is always used in excimer laser components. While, it is a little hygroscopic and susceptible to thermal shock.

Specifications

Material	CaF2 single crystal or MgF2 or BaF2
Dimension Tolerance	+0/-0.1mm
Thickness Tolerance	±0.2mm
Surface Quality	60/40 or better
Power(fringe@633nm)	3
Irregularity(fringe@633nm)	0.5
Centration	<3 arc minutes
Focal Length Tolerance	±2%
Clear Aperture	>90%
Chamfer	Protective <0.5mmx45deg
Coating	Request

Information

Product Line

WARRANTY

All products are guaranteed to be in specifications in material and workmanship for a period of 12 months after shipment.
We do not assume liability for installation, labor or consequential damages.
This warranty is not suitable for failure of the products due to misuse, abuse, accident, or neglect.
