Cylindrical Lens

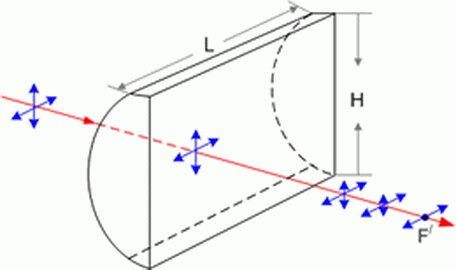

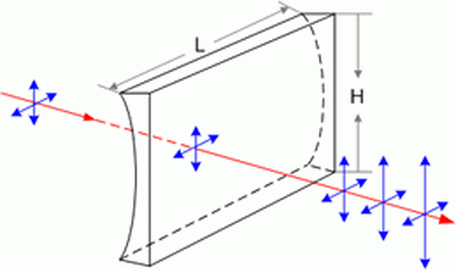

Cylindrical lenses are used to correct astigmatism in the eye and in rangefinders, to produce astigmatism, transform a point of light into a line, they are widely used in bar code scanning, projection optics systems, laser measurement systems and holography.

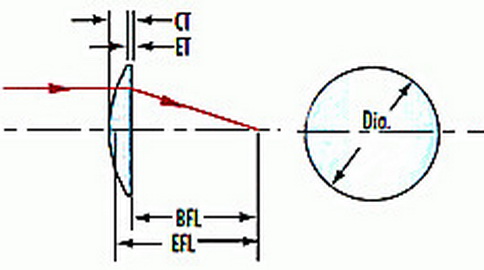

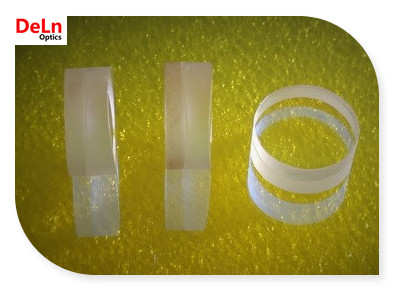

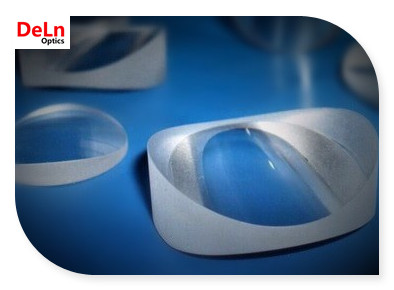

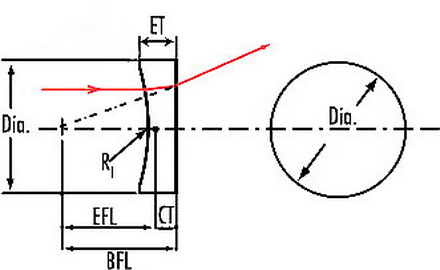

Cylindrical lenses are available in either Rectangular, circular, plano-convex, plano-concave, and achromatic configurations from DELN.

Specifications

Material	BK7,UV Fused Silica, N-SF10, CaF2 etc.
Dimension Tolerance	+0/-0.1mm
Thickness Tolerance	±0.2mm
Surface Quality	60/40 or better
Flatness	1λ to λ/4@632.8nm
Centration	<3 arc minutes
Focal Length Tolerance	±2%
Clear Aperture	>90%
Chamfer	Protective <0.5mmx45deg
Coating	None, per your request

Information

Product Line

WARRANTY

All products are guaranteed to be in specifications in material and workmanship for a period of 12 months after shipment.
We do not assume liability for installation, labor or consequential damages.
This warranty is not suitable for failure of the products due to misuse, abuse, accident, or neglect.
