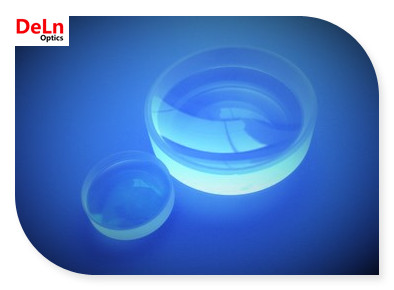

Plano Concave Lens

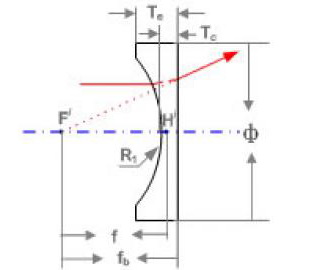

Plano-concave Lenses present a concave surface and a Plano surface. They have a negative focal length and are used for image reduction or to spread light. These lenses diverge to collimated incident light and form virtual images which are seen through the lens.

They are often used to expand light or to increase focal lengths in existing systems.


Specifications

Material

Optical Glasses, Fused Silica, Silicon, Ge,CaF2, etc

Dimension Tolerance

+0/-0.1mm

Thickness Tolerance

±0.2mm

Surface Quality

60/40 or better

Power([email protected])

3

Irregularity([email protected])

0.5

Centration

<3 arc minutes

Focal Length Tolerance

±2%

Clear Aperture

>90%

Chamfer

Protective <0.5mmx45deg

Coating

Request
