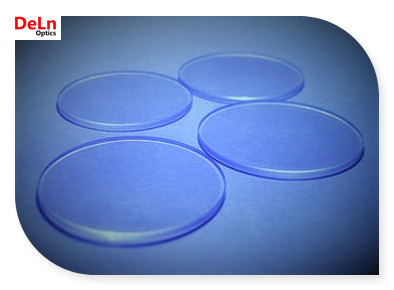

BaF2 Window

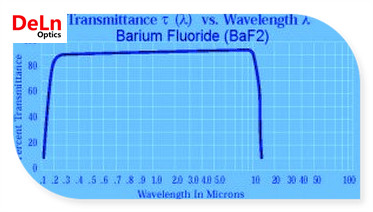

BaF2 crystals used as ultraviolet or infrared and laser window materials.Barium fluoride crystal is a kind of excellent high density optical materials, excellent performance, is also a good buffer layer, can connect different semiconductor lattice constant.

Barium fluoride crystals with excellent performance and fast scintillation characteristics of time, to make it in nuclear medicine, nuclear physics, particle physics, and the use of remote sensing technology, etc, more and more widely, also have good resistance to tide, the use of high temperature, etc.

BaF2 crystals can be used for CO2 laser device and window materials and used for other optical components of the machine.




Specifications

Material

BaF2

Dimension Tolerance

+0.0/-0.1mm

Thickness Tolerance

±0.2mm

Clear Aperture

>90%

Parallelism

<1 arc minutes

Surface Quality

80/50 or 60/40 or 40/20

Flatness

<λ /[email protected] or better

Chamfer

Protected <0.5mmx45deg

Coating

None, per your request
